耐环境大型输送链　GSA规格

製品写真
  • 这是比GS规格更高的规格，具有更高的耐磨性和最大容许张力。
  • 与GS规格相比，衬套与滚子之间的耐磨性提高了一倍，销与衬套之间的耐磨性提高了 1.5 倍，R 滚子和 F 滚子的最大容许张力和允许载荷提高了 1.3 倍。
  • 环境温度：-20°C* 至 200°C
  • ※在-20°C以下使用时，请向本公司咨询。

特性

与 GS GS规格相比，GSA规格提高了耐磨性和最大容许张力。

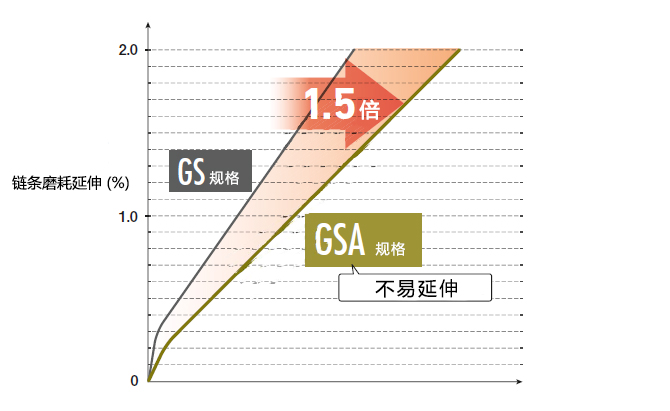

  • ·销钉与衬套间的耐磨性能1.5倍

    销-轴套间耐磨性能 (内部实验比)

    ピン～ブシュ間の耐摩耗性能1.5倍

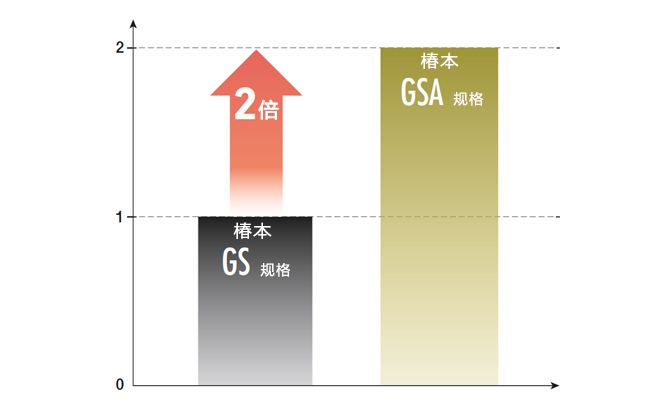

  • ·衬套与滚子间的耐磨性能2倍

    衬套~滚子间耐磨性能 (公司内部实验比)

    ブシュ～ローラ間の耐摩耗性能2倍

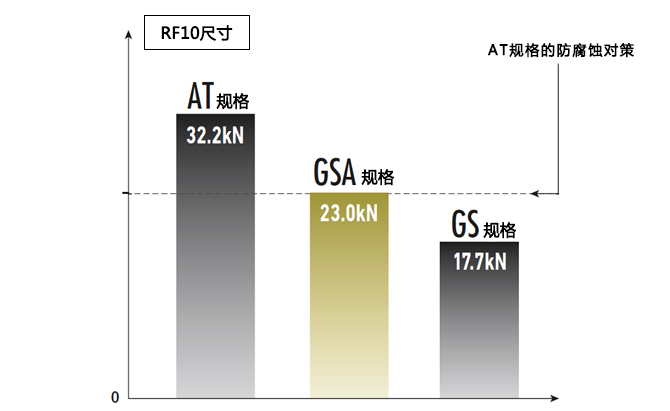

  • -最大容许张力，R 辊，F 辊允许载荷 1.3 倍

    最大容许张力比较（与内部实验结果比较）

    最大許容張力、Rローラ、Fローラ許容負荷1.3倍

产品目录、使用说明书

商品一览表

※单击查看详细信息

*最大容许张力是根据我们的设计标准计算得出的值，即计算强度。除非另有规定，否则在选择大型输送链时应使用最大容许张力。
该数值因制造商而异，并非保证值。

※平均拉伸强度请咨询本公司。

米制节距

尺寸 滚子
类型		 节距 滚子
外径		 内链节
内宽
75mm 100mm 125mm 150mm 200mm 250mm 300mm 450mm Φmm mm
RF03 R RF03075R-GSA RF03100R-GSA --- --- --- --- --- --- 31.8 16.1
F RF03075F-GSA RF03100F-GSA --- --- --- --- --- --- 31.8
S RF03075S-GSA RF03100S-GSA --- --- --- --- --- --- 15.9
RF05 R --- RF05100R-GSA RF05125R-GSA RF05150R-GSA --- --- --- --- 40 22
F --- RF05100F-GSA RF05125F-GSA RF05150F-GSA --- --- --- --- 40
S RF05075S-GSA RF05100S-GSA RF05125S-GSA RF05150S-GSA --- --- --- --- 22.2
RF08 R --- --- RF08125R-GSA RF08150R-GSA --- --- --- --- 44.5 27
F --- --- RF08125F-GSA RF08150F-GSA --- --- --- --- 44.5
S --- --- RF08125S-GSA RF08150S-GSA --- --- --- --- 22.2
RF10 R --- RF10100R-GSA RF10125R-GSA RF10150R-GSA --- --- --- --- 50.8 30
F --- --- RF10125F-GSA RF10150F-GSA --- --- --- --- 50.8
S --- RF10100S-GSA RF10125S-GSA RF10150S-GSA --- --- --- --- 29
M --- RF10100M-GSA RF10125M-GSA RF10150M-GSA --- --- --- --- 31.8
RF12 R --- --- --- --- RF12200R-GSA RF12250R-GSA --- --- 65 37.1
F --- --- --- --- RF12200F-GSA RF12250F-GSA --- --- 65
S --- --- --- --- RF12200S-GSA RF12250S-GSA --- --- 34.9
M --- --- --- --- RF12200M-GSA RF12250M-GSA --- --- 38.1
RF17 R --- --- --- --- RF17200R-GSA RF17250R-GSA RF17300R-GSA --- 80 51.4
F --- --- --- --- RF17200F-GSA RF17250F-GSA RF17300F-GSA --- 80
S --- --- --- --- RF17200S-GSA RF17250S-GSA RF17300S-GSA --- 40.1
M --- --- --- --- RF17200M-GSA RF17250M-GSA RF17300M-GSA --- 44.5
RF26 R --- --- --- --- --- RF26250R-GSA RF26300R-GSA RF26450R-GSA 100 57.2
F --- --- --- --- --- RF26250F-GSA RF26300F-GSA RF26450F-GSA 100
S --- --- --- --- RF26200S-GSA RF26250S-GSA RF26300S-GSA RF26450S-GSA 44.5
M --- --- --- --- RF26200M-GSA RF26250M-GSA RF26300M-GSA RF26450M-GSA 50.8
※上述间距以外的部分也可制作。请咨询。
※英制间距为特型对应品。请咨询。 返回本页顶部
