链条张紧器・惰轮
- 链条驱动必备，链条张紧器FR惰轮
- 链条的大量松弛会造成振动、噪音，导致与链轮的啮合不良等，无法进行顺畅的链条传动。
- 椿本链条张紧器调整链条松弛度，使链条传动保持正常。
- FR惰轮是附带轮毂的轴承，能传递稳定的旋转。
链条张紧器
| 产品名称和特征 | ||
|---|---|---|
|
CT-TCS型 这是一款带有摆动式吊链的张紧器。 *前往传动链配件页面。 |
详细信息 |
|
CT-ETS型 这是一款直动式、附带惰轮的张紧器。 *前往传动链配件页面。 |
详细信息 |
|
CT-TA型 这是一款带塑料靴的直动式张紧器。 *前往传动链配件页面。 |
详细信息 |
|
CT-TH型 可选择惰轮，使用更简单方便 *前往传动链配件页面。 |
详细信息 |
FR惰轮
- 附带轮毂的轴承，可传递稳定的旋转。
- 有丰富的品种。也可以作为链条张紧器CT-TH型的惰轮使用。
- *滚珠轴承规格和无油衬套规格2种
应用实例
在轴间距离较长时防止松弛
多轴驱动时的中间惰轮
链条卷角不足时
型号表示例
| FR | B | - | RS40 | - | 15T | - | N |
| ｜ ｜ ｜ ｜ ｜ |
｜ ｜ |
| 尺寸 |
| 齿数 |
| 表面处理 |
|||
| 轴承规格 B:滚珠轴承规格 L:无油衬套规格 |
N:无电镀 K:无电解镍磷镀 |
||||||

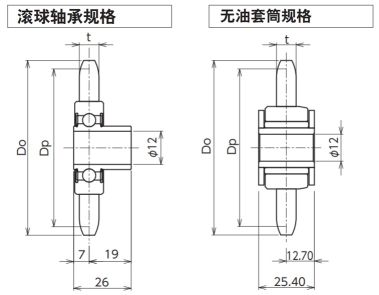

| FR惰轮 | |||||||
品种・尺寸一览表
适用链号和齿数（所有齿顶均已硬化）
| 链条 编号 |
齿数 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | |
| RS35 | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||
| RS40 | ● | ● | ● | ● | ● | ● | ● | ||||||||||
| RS50 | ● | ● | ● | ● | ● | ● | |||||||||||
| RS60 | ● | ● | ● | ● | |||||||||||||
| RS80 | ● | ● | ● | ● | ● | ||||||||||||
| 链条 | 齿数 | 节距圆 直径 DP mm |
外径 Do mm |
齿宽 t mm |
型号、DXF图形、3D CAD数据、PDF图纸 | |||
|---|---|---|---|---|---|---|---|---|
| 滚珠轴承规格 | 无油衬套规格 | |||||||
| 无电镀 | 无电解镍磷镀 | 无电镀 | 无电解镍磷镀 | |||||
| RS35 | 18 | 54.85 | 60 | 4.4 | FRB-RS35-18TQ-N DXF・3DCAD・ PDF |
FRB-RS35-18TQ-K DXF・3DCAD・ PDF |
FRL-RS35-18TQ-N DXF・3DCAD・ PDF |
FRL-RS35-18TQ-K DXF・3DCAD・ PDF |
| 19 | 57.87 | 63 | FRB-RS35-19TQ-N DXF・3DCAD・ PDF |
FRB-RS35-19TQ-K DXF・3DCAD・ PDF |
FRL-RS35-19TQ-N DXF・3DCAD・ PDF |
FRL-RS35-19TQ-K DXF・3DCAD・ PDF |
||
| 20 | 60.89 | 66 | FRB-RS35-20TQ-N DXF・3DCAD・ PDF |
FRB-RS35-20TQ-K DXF・3DCAD・ PDF |
FRL-RS35-20TQ-N DXF・3DCAD・ PDF |
FRL-RS35-20TQ-K DXF・3DCAD・ PDF |
||
| 21 | 63.91 | 69 | FRB-RS35-21TQ-N DXF・3DCAD・ PDF |
FRB-RS35-21TQ-K DXF・3DCAD・ PDF |
FRL-RS35-21TQ-N DXF・3DCAD・ PDF |
FRL-RS35-21TQ-K DXF・3DCAD・ PDF |
||
| 22 | 66.93 | 72 | FRB-RS35-22TQ-N DXF・3DCAD・ PDF |
FRB-RS35-22TQ-K DXF・3DCAD・ PDF |
FRL-RS35-22TQ-N DXF・3DCAD・ PDF |
FRL-RS35-22TQ-K DXF・3DCAD・ PDF |
||
| 23 | 69.95 | 75 | FRB-RS35-23TQ-N DXF・3DCAD・ PDF |
FRB-RS35-23TQ-K DXF・3DCAD・ PDF |
FRL-RS35-23TQ-N DXF・3DCAD・ PDF |
FRL-RS35-23TQ-K DXF・3DCAD・ PDF |
||
| 24 | 72.97 | 78 | FRB-RS35-24TQ-N DXF・3DCAD・ PDF |
FRB-RS35-24TQ-K DXF・3DCAD・ PDF |
FRL-RS35-24TQ-N DXF・3DCAD・ PDF |
FRL-RS35-24TQ-K DXF・3DCAD・ PDF |
||
| 25 | 76.00 | 81 | FRB-RS35-25TQ-N DXF・3DCAD・ PDF |
FRB-RS35-25TQ-K DXF・3DCAD・ PDF |
FRL-RS35-25TQ-N DXF・3DCAD・ PDF |
FRL-RS35-25TQ-K DXF・3DCAD・ PDF |
||
| RS40 | 14 | 57.07 | 63 | 7.3 | FRB-RS40-14TQ-N DXF・3DCAD・ PDF |
FRB-RS40-14TQ-K DXF・3DCAD・ PDF |
FRL-RS40-14TQ-N DXF・3DCAD・ PDF |
FRL-RS40-14TQ-K DXF・3DCAD・ PDF |
| 15 | 61.08 | 67 | FRB-RS40-15TQ-N DXF・3DCAD・ PDF |
FRB-RS40-15TQ-K DXF・3DCAD・ PDF |
FRL-RS40-15TQ-N DXF・3DCAD・ PDF |
FRL-RS40-15TQ-K DXF・3DCAD・ PDF |
||
| 16 | 65.10 | 71 | FRB-RS40-16TQ-N DXF・3DCAD・ PDF |
FRB-RS40-16TQ-K DXF・3DCAD・ PDF |
FRL-RS40-16TQ-N DXF・3DCAD・ PDF |
FRL-RS40-16TQ-K DXF・3DCAD・ PDF |
||
| 17 | 69.12 | 75 | FRB-RS40-17TQ-N DXF・3DCAD・ PDF |
FRB-RS40-17TQ-K DXF・3DCAD・ PDF |
FRL-RS40-17TQ-N DXF・3DCAD・ PDF |
FRL-RS40-17TQ-K DXF・3DCAD・ PDF |
||
| 18 | 73.14 | 78 | FRB-RS40-18TQ-N DXF・3DCAD・ PDF |
FRB-RS40-18TQ-K DXF・3DCAD・ PDF |
FRL-RS40-18TQ-N DXF・3DCAD・ PDF |
FRL-RS40-18TQ-K DXF・3DCAD・ PDF |
||
| 19 | 77.16 | 83 | FRB-RS40-19TQ-N DXF・3DCAD・ PDF |
FRB-RS40-19TQ-K DXF・3DCAD・ PDF |
FRL-RS40-19TQ-N DXF・3DCAD・ PDF |
FRL-RS40-19TQ-K DXF・3DCAD・ PDF |
||
| 20 | 81.18 | 88 | FRB-RS40-20TQ-N DXF・3DCAD・ PDF |
FRB-RS40-20TQ-K DXF・3DCAD・ PDF |
FRL-RS40-20TQ-N DXF・3DCAD・ PDF |
FRL-RS40-20TQ-K DXF・3DCAD・ PDF |
||
| RS50 | 12 | 61.34 | 68 | 8.9 | FRB-RS50-12TQ-N DXF・3DCAD・ PDF |
FRB-RS50-12TQ-K DXF・3DCAD・ PDF |
FRL-RS50-12TQ-N DXF・3DCAD・ PDF |
FRL-RS50-12TQ-K DXF・3DCAD・ PDF |
| 13 | 66.33 | 73 | FRB-RS50-13TQ-N DXF・3DCAD・ PDF |
FRB-RS50-13TQ-K DXF・3DCAD・ PDF |
FRL-RS50-13TQ-N DXF・3DCAD・ PDF |
FRL-RS50-13TQ-K DXF・3DCAD・ PDF |
||
| 14 | 71.34 | 79 | FRB-RS50-14TQ-N DXF・3DCAD・ PDF |
FRB-RS50-14TQ-K DXF・3DCAD・ PDF |
FRL-RS50-14TQ-N DXF・3DCAD・ PDF |
FRL-RS50-14TQ-K DXF・3DCAD・ PDF |
||
| 15 | 76.35 | 84 | FRB-RS50-15TQ-N DXF・3DCAD・ PDF |
FRB-RS50-15TQ-K DXF・3DCAD・ PDF |
FRL-RS50-15TQ-N DXF・3DCAD・ PDF |
FRL-RS50-15TQ-K DXF・3DCAD・ PDF |
||
| 16 | 81.37 | 89 | FRB-RS50-16TQ-N DXF・3DCAD・ PDF |
FRB-RS50-16TQ-K DXF・3DCAD・ PDF |
FRL-RS50-16TQ-N DXF・3DCAD・ PDF |
FRL-RS50-16TQ-K DXF・3DCAD・ PDF |
||
| 17 | 86.39 | 94 | FRB-RS50-17TQ-N DXF・3DCAD・ PDF |
FRB-RS50-17TQ-K DXF・3DCAD・ PDF |
FRL-RS50-17TQ-N DXF・3DCAD・ PDF |
FRL-RS50-17TQ-K DXF・3DCAD・ PDF |
||
| RS60 | 11 | 67.62 | 76 | 11.9 | FRB-RS60-11TQ-N DXF・3DCAD・ PDF |
FRB-RS60-11TQ-K DXF・3DCAD・ PDF |
FRL-RS60-11TQ-N DXF・3DCAD・ PDF |
FRL-RS60-11TQ-K DXF・3DCAD・ PDF |
| 12 | 73.60 | 82 | FRB-RS60-12TQ-N DXF・3DCAD・ PDF |
FRB-RS60-12TQ-K DXF・3DCAD・ PDF |
FRL-RS60-12TQ-N DXF・3DCAD・ PDF |
FRL-RS60-12TQ-K DXF・3DCAD・ PDF |
||
| 13 | 79.60 | 89 | FRB-RS60-13TQ-N DXF・3DCAD・ PDF |
FRB-RS60-13TQ-K DXF・3DCAD・ PDF |
FRL-RS60-13TQ-N DXF・3DCAD・ PDF |
FRL-RS60-13TQ-K DXF・3DCAD・ PDF |
||
| 14 | 85.61 | 95 | FRB-RS60-14TQ-N DXF・3DCAD・ PDF |
FRB-RS60-14TQ-K DXF・3DCAD・ PDF |
FRL-RS60-14TQ-N DXF・3DCAD・ PDF |
FRL-RS60-14TQ-K DXF・3DCAD・ PDF |
||
| RS80 | 9 | 74.26 | 85 | 15.0 | FRB-RS80-9TQ-N DXF・3DCAD・ PDF |
FRB-RS80-9TQ-K DXF・3DCAD・ PDF |
FRL-RS80-9TQ-N DXF・3DCAD・ PDF |
FRL-RS80-9TQ-K DXF・3DCAD・ PDF |
| 10 | 82.20 | 93 | FRB-RS80-10TQ-N DXF・3DCAD・ PDF |
FRB-RS80-10TQ-K DXF・3DCAD・ PDF |
FRL-RS80-10TQ-N DXF・3DCAD・ PDF |
FRL-RS80-10TQ-K DXF・3DCAD・ PDF |
||
| 11 | 90.16 | 101 | FRB-RS80-11TQ-N DXF・3DCAD・ PDF |
FRB-RS80-11TQ-K DXF・3DCAD・ PDF |
FRL-RS80-11TQ-N DXF・3DCAD・ PDF |
FRL-RS80-11TQ-K DXF・3DCAD・ PDF |
||
| 12 | 98.14 | 108 | FRB-RS80-12TQ-N DXF・3DCAD・ PDF |
FRB-RS80-12TQ-K DXF・3DCAD・ PDF |
FRL-RS80-12TQ-N DXF・3DCAD・ PDF |
FRL-RS80-12TQ-K DXF・3DCAD・ PDF |
||
| 13 | 106.14 | 118 | FRB-RS80-13TQ-N DXF・3DCAD・ PDF |
FRB-RS80-13TQ-K DXF・3DCAD・ PDF |
FRL-RS80-13TQ-N DXF・3DCAD・ PDF |
FRL-RS80-13TQ-K DXF・3DCAD・ PDF |
||
所有品种都是按订单生产的产品。
选项类 - 惰轮螺栓组件 -
惰轮螺栓配套品种
| 型号 | 尺寸 | L (mm) |
|---|---|---|
| FR-PS45 | M12 | 45 |
| FR-PS55 | 55 | |
| FR-PS70 | 70 |
附件
- ·1个螺栓，1个螺母，3个平垫圈
- ·弹簧垫圈1个 (表面处理:三价铬酸盐)

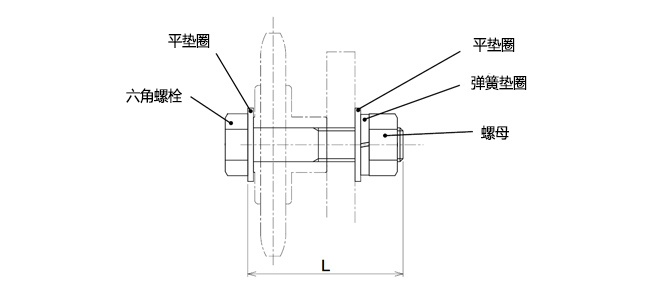

滑块螺栓安装示例 (滚珠轴承规格)
