椿本产品选择

准双曲面齿轮减速电机迷你系列

产品图片

这是一款准双曲面齿轮电机，电机功率范围为 40W 至 90W。
直交轴型准双曲面齿轮减速电机迷你系列。
所有机型均采用铝框马达和静音制动器。体积小，重量轻，可安静运行。
备有单相、三相、40、60、90W等多种型号。

特性

·高扭矩、高效率

在低输出转速和高减速比下，没有扭矩限制，可以传递高扭矩。

另外，与暖型相比，滑动少，实现了高效率和省成本化。
·长寿命

在这个级别中，实现了最高的平均1万小时以上的长寿命。
·安装自如

外壳上的上下安装间距相同，可轻松进行任意错位安装。
·丰富的减速比

备有1/5~1/240的丰富减速比。
·室外型号相当于IP65

室外型全都是防水规格，相当于IEC规格IP65的产品。

标准机型

电动机容量		减速比
单相、三相	40W	1/5～1/240
	60W	1/5～1/240
	90W	1/5～1/240

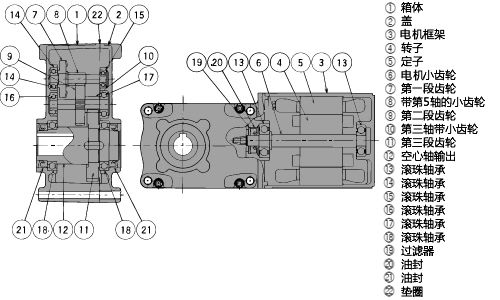

结构

产品目录、使用说明书

型号表示例

HMM	T	60	L	50	L	B
\| 系列名	\| 电机规格	\| 电机容量	\| 安装形式	\| 减速比	｜｜｜｜	\| 制动器
	T:三相 S:单相	40：40W 60：60W 90：90W	H:中空轴型 U:表面固定型 L:脚固定型	50：1/50		无符号:无制动器 B:带制动器
					轴配置 L:从电机侧看输出轴为左侧 T:输出轴为两侧 R:从电机侧看输出轴为右侧 S:输出轴为单侧(表面侧，仅表面安装类型) 无符号:中空轴形

我们准备了丰富的选项。关于选项的种类和型号，请在这里确认。

■椿本产品型号指引

*要生成正确的格式编号，请按从左到右的顺序选择项目。

系列	电机规格	电动机容量	安装形式	减速比	轴配置	制动器
HMM			H:空心轴型 U:表面固定型 L:支脚安装		L:左侧 R:右侧 T:两侧 S:单侧无符号	无符号 B: 附煞车

电机规格

T:三相电源。

S:单相电源。

电动机容量

表示电机的容量。

安装形式

H:输出轴为空心类型。

U:输出轴是实心类型，是面安装类型。

L:输出轴为实心型，安装支脚。

减速比

表示减速比。

轴配置

L:安装形式为脚安装 (L) 时，从电机侧看实心输出轴伸出左侧的类型。

R:安装形式为脚安装 (L) 时，从电机侧看实心输出轴伸出右侧的类型。

T:实心输出轴位于两侧的类型。

S:安装形式为表面安装 (U) 时，实心输出轴伸出安装面侧的类型。

无符号:安装类型为空心轴类型 (H) 时，不需要轴对齐符号。

制动器

无符号:无制动器。

B:带制动器。

规格代号

W:支持室外安装。

J:支持溅水环境下的安装。

V:电源电压加倍。

三相时400/400/440V·50/60/60Hz,

单相时为200V·50/60Hz。

WV:室外规格+倍电压规格。

P:附带树脂制接线盒。

PV:附带树脂制接线盒+倍电压规格。

N2:符合UL规格。

N3:CCC规格。

商品一览表

※单击形状编号以显示详细信息。全部开启全部关闭

三相40W (型号HMMT40~)

减速比	无刹车			带制动器
减速比	空心轴型	面安装型	脚安装型	空心轴型	面安装型	脚安装型
1/5	HMMT40H5	HMMT40U5S HMMT40U5T	HMMT40L5L HMMT40L5R HMMT40L5T	HMMT40H5B	HMMT40U5SB HMMT40U5TB	HMMT40L5LB HMMT40L5RB HMMT40L5TB
1/8	HMMT40H8	HMMT40U8S HMMT40U8T	HMMT40L8L HMMT40L8R HMMT40L8T	HMMT40H8B	HMMT40U8SB HMMT40U8TB	HMMT40L8LB HMMT40L8RB HMMT40L8TB
1/10	HMMT40H10	HMMT40U10S HMMT40U10T	HMMT40L10L HMMT40L10R HMMT40L10T	HMMT40H10B	HMMT40U10SB HMMT40U10TB	HMMT40L10LB HMMT40L10RB HMMT40L10TB
1/15	HMMT40H15	HMMT40U15S HMMT40U15T	HMMT40L15L HMMT40L15R HMMT40L15T	HMMT40H15B	HMMT40U15SB HMMT40U15TB	HMMT40L15LB HMMT40L15RB HMMT40L15TB
1/20	HMMT40H20	HMMT40U20S HMMT40U20T	HMMT40L20L HMMT40L20R HMMT40L20T	HMMT40H20B	HMMT40U20SB HMMT40U20TB	HMMT40L20LB HMMT40L20RB HMMT40L20TB
1/25	HMMT40H25	HMMT40U25S HMMT40U25T	HMMT40L25L HMMT40L25R HMMT40L25T	HMMT40H25B	HMMT40U25SB HMMT40U25TB	HMMT40L25LB HMMT40L25RB HMMT40L25TB
1/30	HMMT40H30	HMMT40U30S HMMT40U30T	HMMT40L30L HMMT40L30R HMMT40L30T	HMMT40H30B	HMMT40U30SB HMMT40U30TB	HMMT40L30LB HMMT40L30RB HMMT40L30TB
1/40	HMMT40H40	HMMT40U40S HMMT40U40T	HMMT40L40L HMMT40L40R HMMT40L40T	HMMT40H40B	HMMT40U40SB HMMT40U40TB	HMMT40L40LB HMMT40L40RB HMMT40L40TB
1/50	HMMT40H50	HMMT40U50S HMMT40U50T	HMMT40L50L HMMT40L50R HMMT40L50T	HMMT40H50B	HMMT40U50SB HMMT40U50TB	HMMT40L50LB HMMT40L50RB HMMT40L50TB
1/60	HMMT40H60	HMMT40U60S HMMT40U60T	HMMT40L60L HMMT40L60R HMMT40L60T	HMMT40H60B	HMMT40U60SB HMMT40U60TB	HMMT40L60LB HMMT40L60RB HMMT40L60TB
1/80	HMMT40H80	HMMT40U80S HMMT40U80T	HMMT40L80L HMMT40L80R HMMT40L80T	HMMT40H80B	HMMT40U80SB HMMT40U80TB	HMMT40L80LB HMMT40L80RB HMMT40L80TB
1/100	HMMT40H100	HMMT40U100S HMMT40U100T	HMMT40L100L HMMT40L100R HMMT40L100T	HMMT40H100B	HMMT40U100SB HMMT40U100TB	HMMT40L100LB HMMT40L100RB HMMT40L100TB
1/120	HMMT40H120	HMMT40U120S HMMT40U120T	HMMT40L120L HMMT40L120R HMMT40L120T	HMMT40H120B	HMMT40U120SB HMMT40U120TB	HMMT40L120LB HMMT40L120RB HMMT40L120TB
1/160	HMMT40H160	HMMT40U160S HMMT40U160T	HMMT40L160L HMMT40L160R HMMT40L160T	HMMT40H160B	HMMT40U160SB HMMT40U160TB	HMMT40L160LB HMMT40L160RB HMMT40L160TB
1/200	HMMT40H200	HMMT40U200S HMMT40U200T	HMMT40L200L HMMT40L200R HMMT40L200T	HMMT40H200B	HMMT40U200SB HMMT40U200TB	HMMT40L200LB HMMT40L200RB HMMT40L200TB
1/240	HMMT40H240	HMMT40U240S HMMT40U240T	HMMT40L240L HMMT40L240R HMMT40L240T	HMMT40H240B	HMMT40U240SB HMMT40U240TB	HMMT40L240LB HMMT40L240RB HMMT40L240TB

返回此页面的顶部

三相60W (型号HMMT60~)

减速比	无刹车			带制动器
减速比	空心轴型	面安装型	脚安装型	空心轴型	面安装型	脚安装型
1/5	HMMT60H5	HMMT60U5S HMMT60U5T	HMMT60L5L HMMT60L5R HMMT60L5T	HMMT60H5B	HMMT60U5SB HMMT60U5TB	HMMT60L5LB HMMT60L5RB HMMT60L5TB
1/8	HMMT60H8	HMMT60U8S HMMT60U8T	HMMT60L8L HMMT60L8R HMMT60L8T	HMMT60H8B	HMMT60U8SB HMMT60U8TB	HMMT60L8LB HMMT60L8RB HMMT60L8TB
1/10	HMMT60H10	HMMT60U10S HMMT60U10T	HMMT60L10L HMMT60L10R HMMT60L10T	HMMT60H10B	HMMT60U10SB HMMT60U10TB	HMMT60L10LB HMMT60L10RB HMMT60L10TB
1/15	HMMT60H15	HMMT60U15S HMMT60U15T	HMMT60L15L HMMT60L15R HMMT60L15T	HMMT60H15B	HMMT60U15SB HMMT60U15TB	HMMT60L15LB HMMT60L15RB HMMT60L15TB
1/20	HMMT60H20	HMMT60U20S HMMT60U20T	HMMT60L20L HMMT60L20R HMMT60L20T	HMMT60H20B	HMMT60U20SB HMMT60U20TB	HMMT60L20LB HMMT60L20RB HMMT60L20TB
1/25	HMMT60H25	HMMT60U25S HMMT60U25T	HMMT60L25L HMMT60L25R HMMT60L25T	HMMT60H25B	HMMT60U25SB HMMT60U25TB	HMMT60L25LB HMMT60L25RB HMMT60L25TB
1/30	HMMT60H30	HMMT60U30S HMMT60U30T	HMMT60L30L HMMT60L30R HMMT60L30T	HMMT60H30B	HMMT60U30SB HMMT60U30TB	HMMT60L30LB HMMT60L30RB HMMT60L30TB
1/40	HMMT60H40	HMMT60U40S HMMT60U40T	HMMT60L40L HMMT60L40R HMMT60L40T	HMMT60H40B	HMMT60U40SB HMMT60U40TB	HMMT60L40LB HMMT60L40RB HMMT60L40TB
1/50	HMMT60H50	HMMT60U50S HMMT60U50T	HMMT60L50L HMMT60L50R HMMT60L50T	HMMT60H50B	HMMT60U50SB HMMT60U50TB	HMMT60L50LB HMMT60L50RB HMMT60L50TB
1/60	HMMT60H60	HMMT60U60S HMMT60U60T	HMMT60L60L HMMT60L60R HMMT60L60T	HMMT60H60B	HMMT60U60SB HMMT60U60TB	HMMT60L60LB HMMT60L60RB HMMT60L60TB
1/80	HMMT60H80	HMMT60U80S HMMT60U80T	HMMT60L80L HMMT60L80R HMMT60L80T	HMMT60H80B	HMMT60U80SB HMMT60U80TB	HMMT60L80LB HMMT60L80RB HMMT60L80TB
1/100	HMMT60H100	HMMT60U100S HMMT60U100T	HMMT60L100L HMMT60L100R HMMT60L100T	HMMT60H100B	HMMT60U100SB HMMT60U100TB	HMMT60L100LB HMMT60L100RB HMMT60L100TB
1/120	HMMT60H120	HMMT60U120S HMMT60U120T	HMMT60L120L HMMT60L120R HMMT60L120T	HMMT60H120B	HMMT60U120SB HMMT60U120TB	HMMT60L120LB HMMT60L120RB HMMT60L120TB
1/160	HMMT60H160	HMMT60U160S HMMT60U160T	HMMT60L160L HMMT60L160R HMMT60L160T	HMMT60H160B	HMMT60U160SB HMMT60U160TB	HMMT60L160LB HMMT60L160RB HMMT60L160TB
1/200	HMMT60H200	HMMT60U200S HMMT60U200T	HMMT60L200L HMMT60L200R HMMT60L200T	HMMT60H200B	HMMT60U200SB HMMT60U200TB	HMMT60L200LB HMMT60L200RB HMMT60L200TB
1/240	HMMT60H240	HMMT60U240S HMMT60U240T	HMMT60L240L HMMT60L240R HMMT60L240T	HMMT60H240B	HMMT60U240SB HMMT60U240TB	HMMT60L240LB HMMT60L240RB HMMT60L240TB

返回此页面的顶部

三相90W (型号HMMT90~)

减速比	无刹车			带制动器
减速比	空心轴型	面安装型	脚安装型	空心轴型	面安装型	脚安装型
1/5	HMMT90H5	HMMT90U5S HMMT90U5T	HMMT90L5L HMMT90L5R HMMT90L5T	HMMT90H5B	HMMT90U5SB HMMT90U5TB	HMMT90L5LB HMMT90L5RB HMMT90L5TB
1/8	HMMT90H8	HMMT90U8S HMMT90U8T	HMMT90L8L HMMT90L8R HMMT90L8T	HMMT90H8B	HMMT90U8SB HMMT90U8TB	HMMT90L8LB HMMT90L8RB HMMT90L8TB
1/10	HMMT90H10	HMMT90U10S HMMT90U10T	HMMT90L10L HMMT90L10R HMMT90L10T	HMMT90H10B	HMMT90U10SB HMMT90U10TB	HMMT90L10LB HMMT90L10RB HMMT90L10TB
1/15	HMMT90H15	HMMT90U15S HMMT90U15T	HMMT90L15L HMMT90L15R HMMT90L15T	HMMT90H15B	HMMT90U15SB HMMT90U15TB	HMMT90L15LB HMMT90L15RB HMMT90L15TB
1/20	HMMT90H20	HMMT90U20S HMMT90U20T	HMMT90L20L HMMT90L20R HMMT90L20T	HMMT90H20B	HMMT90U20SB HMMT90U20TB	HMMT90L20LB HMMT90L20RB HMMT90L20TB
1/25	HMMT90H25	HMMT90U25S HMMT90U25T	HMMT90L25L HMMT90L25R HMMT90L25T	HMMT90H25B	HMMT90U25SB HMMT90U25TB	HMMT90L25LB HMMT90L25RB HMMT90L25TB
1/30	HMMT90H30	HMMT90U30S HMMT90U30T	HMMT90L30L HMMT90L30R HMMT90L30T	HMMT90H30B	HMMT90U30SB HMMT90U30TB	HMMT90L30LB HMMT90L30RB HMMT90L30TB
1/40	HMMT90H40	HMMT90U40S HMMT90U40T	HMMT90L40L HMMT90L40R HMMT90L40T	HMMT90H40B	HMMT90U40SB HMMT90U40TB	HMMT90L40LB HMMT90L40RB HMMT90L40TB
1/50	HMMT90H50	HMMT90U50S HMMT90U50T	HMMT90L50L HMMT90L50R HMMT90L50T	HMMT90H50B	HMMT90U50SB HMMT90U50TB	HMMT90L50LB HMMT90L50RB HMMT90L50TB
1/60	HMMT90H60	HMMT90U60S HMMT90U60T	HMMT90L60L HMMT90L60R HMMT90L60T	HMMT90H60B	HMMT90U60SB HMMT90U60TB	HMMT90L60LB HMMT90L60RB HMMT90L60TB
1/80	HMMT90H80	HMMT90U80S HMMT90U80T	HMMT90L80L HMMT90L80R HMMT90L80T	HMMT90H80B	HMMT90U80SB HMMT90U80TB	HMMT90L80LB HMMT90L80RB HMMT90L80TB
1/100	HMMT90H100	HMMT90U100S HMMT90U100T	HMMT90L100L HMMT90L100R HMMT90L100T	HMMT90H100B	HMMT90U100SB HMMT90U100TB	HMMT90L100LB HMMT90L100RB HMMT90L100TB
1/120	HMMT90H120	HMMT90U120S HMMT90U120T	HMMT90L120L HMMT90L120R HMMT90L120T	HMMT90H120B	HMMT90U120SB HMMT90U120TB	HMMT90L120LB HMMT90L120RB HMMT90L120TB
1/160	HMMT90H160	HMMT90U160S HMMT90U160T	HMMT90L160L HMMT90L160R HMMT90L160T	HMMT90H160B	HMMT90U160SB HMMT90U160TB	HMMT90L160LB HMMT90L160RB HMMT90L160TB
1/200	HMMT90H200	HMMT90U200S HMMT90U200T	HMMT90L200L HMMT90L200R HMMT90L200T	HMMT90H200B	HMMT90U200SB HMMT90U200TB	HMMT90L200LB HMMT90L200RB HMMT90L200TB
1/240	HMMT90H240	HMMT90U240S HMMT90U240T	HMMT90L240L HMMT90L240R HMMT90L240T	HMMT90H240B	HMMT90U240SB HMMT90U240TB	HMMT90L240LB HMMT90L240RB HMMT90L240TB

返回此页面的顶部

单相40W (型号HMMS40~)

减速比	无刹车			带制动器
减速比	空心轴型	面安装型	脚安装型	空心轴型	面安装型	脚安装型
1/5	HMMS40H5	HMMS40U5S HMMS40U5T	HMMS40L5L HMMS40L5R HMMS40L5T	HMMS40H5B	HMMS40U5SB HMMS40U5TB	HMMS40L5LB HMMS40L5RB HMMS40L5TB
1/8	HMMS40H8	HMMS40U8S HMMS40U8T	HMMS40L8L HMMS40L8R HMMS40L8T	HMMS40H8B	HMMS40U8SB HMMS40U8TB	HMMS40L8LB HMMS40L8RB HMMS40L8TB
1/10	HMMS40H10	HMMS40U10S HMMS40U10T	HMMS40L10L HMMS40L10R HMMS40L10T	HMMS40H10B	HMMS40U10SB HMMS40U10TB	HMMS40L10LB HMMS40L10RB HMMS40L10TB
1/15	HMMS40H15	HMMS40U15S HMMS40U15T	HMMS40L15L HMMS40L15R HMMS40L15T	HMMS40H15B	HMMS40U15SB HMMS40U15TB	HMMS40L15LB HMMS40L15RB HMMS40L15TB
1/20	HMMS40H20	HMMS40U20S HMMS40U20T	HMMS40L20L HMMS40L20R HMMS40L20T	HMMS40H20B	HMMS40U20SB HMMS40U20TB	HMMS40L20LB HMMS40L20RB HMMS40L20TB
1/25	HMMS40H25	HMMS40U25S HMMS40U25T	HMMS40L25L HMMS40L25R HMMS40L25T	HMMS40H25B	HMMS40U25SB HMMS40U25TB	HMMS40L25LB HMMS40L25RB HMMS40L25TB
1/30	HMMS40H30	HMMS40U30S HMMS40U30T	HMMS40L30L HMMS40L30R HMMS40L30T	HMMS40H30B	HMMS40U30SB HMMS40U30TB	HMMS40L30LB HMMS40L30RB HMMS40L30TB
1/40	HMMS40H40	HMMS40U40S HMMS40U40T	HMMS40L40L HMMS40L40R HMMS40L40T	HMMS40H40B	HMMS40U40SB HMMS40U40TB	HMMS40L40LB HMMS40L40RB HMMS40L40TB
1/50	HMMS40H50	HMMS40U50S HMMS40U50T	HMMS40L50L HMMS40L50R HMMS40L50T	HMMS40H50B	HMMS40U50SB HMMS40U50TB	HMMS40L50LB HMMS40L50RB HMMS40L50TB
1/60	HMMS40H60	HMMS40U60S HMMS40U60T	HMMS40L60L HMMS40L60R HMMS40L60T	HMMS40H60B	HMMS40U60SB HMMS40U60TB	HMMS40L60LB HMMS40L60RB HMMS40L60TB
1/80	HMMS40H80	HMMS40U80S HMMS40U80T	HMMS40L80L HMMS40L80R HMMS40L80T	HMMS40H80B	HMMS40U80SB HMMS40U80TB	HMMS40L80LB HMMS40L80RB HMMS40L80TB
1/100	HMMS40H100	HMMS40U100S HMMS40U100T	HMMS40L100L HMMS40L100R HMMS40L100T	HMMS40H100B	HMMS40U100SB HMMS40U100TB	HMMS40L100LB HMMS40L100RB HMMS40L100TB
1/120	HMMS40H120	HMMS40U120S HMMS40U120T	HMMS40L120L HMMS40L120R HMMS40L120T	HMMS40H120B	HMMS40U120SB HMMS40U120TB	HMMS40L120LB HMMS40L120RB HMMS40L120TB
1/160	HMMS40H160	HMMS40U160S HMMS40U160T	HMMS40L160L HMMS40L160R HMMS40L160T	HMMS40H160B	HMMS40U160SB HMMS40U160TB	HMMS40L160LB HMMS40L160RB HMMS40L160TB
1/200	HMMS40H200	HMMS40U200S HMMS40U200T	HMMS40L200L HMMS40L200R HMMS40L200T	HMMS40H200B	HMMS40U200SB HMMS40U200TB	HMMS40L200LB HMMS40L200RB HMMS40L200TB
1/240	HMMS40H240	HMMS40U240S HMMS40U240T	HMMS40L240L HMMS40L240R HMMS40L240T	HMMS40H240B	HMMS40U240SB HMMS40U240TB	HMMS40L240LB HMMS40L240RB HMMS40L240TB

返回此页面的顶部

单相60W (型号HMMS60~)

减速比	无刹车			带制动器
减速比	空心轴型	面安装型	脚安装型	空心轴型	面安装型	脚安装型
1/5	HMMS60H5	HMMS60U5S HMMS60U5T	HMMS60L5L HMMS60L5R HMMS60L5T	HMMS60H5B	HMMS60U5SB HMMS60U5TB	HMMS60L5LB HMMS60L5RB HMMS60L5TB
1/8	HMMS60H8	HMMS60U8S HMMS60U8T	HMMS60L8L HMMS60L8R HMMS60L8T	HMMS60H8B	HMMS60U8SB HMMS60U8TB	HMMS60L8LB HMMS60L8RB HMMS60L8TB
1/10	HMMS60H10	HMMS60U10S HMMS60U10T	HMMS60L10L HMMS60L10R HMMS60L10T	HMMS60H10B	HMMS60U10SB HMMS60U10TB	HMMS60L10LB HMMS60L10RB HMMS60L10TB
1/15	HMMS60H15	HMMS60U15S HMMS60U15T	HMMS60L15L HMMS60L15R HMMS60L15T	HMMS60H15B	HMMS60U15SB HMMS60U15TB	HMMS60L15LB HMMS60L15RB HMMS60L15TB
1/20	HMMS60H20	HMMS60U20S HMMS60U20T	HMMS60L20L HMMS60L20R HMMS60L20T	HMMS60H20B	HMMS60U20SB HMMS60U20TB	HMMS60L20LB HMMS60L20RB HMMS60L20TB
1/25	HMMS60H25	HMMS60U25S HMMS60U25T	HMMS60L25L HMMS60L25R HMMS60L25T	HMMS60H25B	HMMS60U25SB HMMS60U25TB	HMMS60L25LB HMMS60L25RB HMMS60L25TB
1/30	HMMS60H30	HMMS60U30S HMMS60U30T	HMMS60L30L HMMS60L30R HMMS60L30T	HMMS60H30B	HMMS60U30SB HMMS60U30TB	HMMS60L30LB HMMS60L30RB HMMS60L30TB
1/40	HMMS60H40	HMMS60U40S HMMS60U40T	HMMS60L40L HMMS60L40R HMMS60L40T	HMMS60H40B	HMMS60U40SB HMMS60U40TB	HMMS60L40LB HMMS60L40RB HMMS60L40TB
1/50	HMMS60H50	HMMS60U50S HMMS60U50T	HMMS60L50L HMMS60L50R HMMS60L50T	HMMS60H50B	HMMS60U50SB HMMS60U50TB	HMMS60L50LB HMMS60L50RB HMMS60L50TB
1/60	HMMS60H60	HMMS60U60S HMMS60U60T	HMMS60L60L HMMS60L60R HMMS60L60T	HMMS60H60B	HMMS60U60SB HMMS60U60TB	HMMS60L60LB HMMS60L60RB HMMS60L60TB
1/80	HMMS60H80	HMMS60U80S HMMS60U80T	HMMS60L80L HMMS60L80R HMMS60L80T	HMMS60H80B	HMMS60U80SB HMMS60U80TB	HMMS60L80LB HMMS60L80RB HMMS60L80TB
1/100	HMMS60H100	HMMS60U100S HMMS60U100T	HMMS60L100L HMMS60L100R HMMS60L100T	HMMS60H100B	HMMS60U100SB HMMS60U100TB	HMMS60L100LB HMMS60L100RB HMMS60L100TB
1/120	HMMS60H120	HMMS60U120S HMMS60U120T	HMMS60L120L HMMS60L120R HMMS60L120T	HMMS60H120B	HMMS60U120SB HMMS60U120TB	HMMS60L120LB HMMS60L120RB HMMS60L120TB
1/160	HMMS60H160	HMMS60U160S HMMS60U160T	HMMS60L160L HMMS60L160R HMMS60L160T	HMMS60H160B	HMMS60U160SB HMMS60U160TB	HMMS60L160LB HMMS60L160RB HMMS60L160TB
1/200	HMMS60H200	HMMS60U200S HMMS60U200T	HMMS60L200L HMMS60L200R HMMS60L200T	HMMS60H200B	HMMS60U200SB HMMS60U200TB	HMMS60L200LB HMMS60L200RB HMMS60L200TB
1/240	HMMS60H240	HMMS60U240S HMMS60U240T	HMMS60L240L HMMS60L240R HMMS60L240T	HMMS60H240B	HMMS60U240SB HMMS60U240TB	HMMS60L240LB HMMS60L240RB HMMS60L240TB

返回此页面的顶部

单相90W (型号HMMS90~)

减速比	无刹车
减速比	空心轴型	面安装型	脚安装型
1/5	HMMS90H5	HMMS90U5S HMMS90U5T	HMMS90L5L HMMS90L5R HMMS90L5T
1/8	HMMS90H8	HMMS90U8S HMMS90U8T	HMMS90L8L HMMS90L8R HMMS90L8T
1/10	HMMS90H10	HMMS90U10S HMMS90U10T	HMMS90L10L HMMS90L10R HMMS90L10T
1/15	HMMS90H15	HMMS90U15S HMMS90U15T	HMMS90L15L HMMS90L15R HMMS90L15T
1/20	HMMS90H20	HMMS90U20S HMMS90U20T	HMMS90L20L HMMS90L20R HMMS90L20T
1/25	HMMS90H25	HMMS90U25S HMMS90U25T	HMMS90L25L HMMS90L25R HMMS90L25T
1/30	HMMS90H30	HMMS90U30S HMMS90U30T	HMMS90L30L HMMS90L30R HMMS90L30T
1/40	HMMS90H40	HMMS90U40S HMMS90U40T	HMMS90L40L HMMS90L40R HMMS90L40T
1/50	HMMS90H50	HMMS90U50S HMMS90U50T	HMMS90L50L HMMS90L50R HMMS90L50T
1/60	HMMS90H60	HMMS90U60S HMMS90U60T	HMMS90L60L HMMS90L60R HMMS90L60T
1/80	HMMS90H80	HMMS90U80S HMMS90U80T	HMMS90L80L HMMS90L80R HMMS90L80T
1/100	HMMS90H100	HMMS90U100S HMMS90U100T	HMMS90L100L HMMS90L100R HMMS90L100T
1/120	HMMS90H120	HMMS90U120S HMMS90U120T	HMMS90L120L HMMS90L120R HMMS90L120T
1/160	HMMS90H160	HMMS90U160S HMMS90U160T	HMMS90L160L HMMS90L160R HMMS90L160T
1/200	HMMS90H200	HMMS90U200S HMMS90U200T	HMMS90L200L HMMS90L200R HMMS90L200T
1/240	HMMS90H240	HMMS90U240S HMMS90U240T	HMMS90L240L HMMS90L240R HMMS90L240T

返回此页面的顶部

选项

轴端盖

·备有中空轴形、安装在与安装相反一侧的中空轴端的盖板。附适配器，可对应双轴形。
(材质:聚丙烯树脂制，绿色)

尺寸（单位：mm）、PDF图纸、标准价格和交货期

型号	容量、速比	PDF图纸	标准价格	交货期
HM42CAP	HMMT40H5～240 HMMS40H5～240	PDF	お問合せください	お問合せください
HM48CAP	HMMT60H5～240 HMMS60H5～240 HMMT90H5～240 HMMS90H5～240	PDF	お問合せください	お問合せください

扭力臂

·中空轴形，备有轴上安装时的扭矩臂。附适配器，可对应双轴形。(材质:SS400)

根据减速机的安装情况，它可以安装在任一位置。

・尺寸（单位：mm）、PDF图纸、标准价格和交货期

型号	容量、速比	A	B	C	D	H	L	R1	R2	R3	ΦZ1	ΦZ2	推荐螺栓	板厚 t	PDF图纸	标准价格	交货期
HM80TA	HMMT40H5～240 HMMS40H5～240	80	47	33	63	67	114	9	11	―	9	11	M10	4.5	PDF	お問合せください	お問合せください
HM100TA	60W 1/5～1/240 90W 1/5～1/240 0.1kW 1/5～1/120 0.2kW 1/5～1/60	100	62	38	70	82	126	9	11	37	9	11	M10	4.5	PDF	お問合せください	お問合せください
