椿本产品选择

MD齿轮箱

产品图片

高性能、高效率通用型直交轴螺旋伞齿轮齿轮箱。
这是一款从发售以来历经半个世纪，在各种用途上都非常活跃的长款产品。
凭借丰富的业绩和经验，各个领域的客户在可靠性方面都给予了很高的评价。
采用螺旋伞齿轮，可实现高传动比和高效率。

特性

·丰富的规格系列

从丰富的机型中选择最合适的一款。

为满足所有市场需求，还支持各种特殊规格。
·高品质

采用符合AGMA规格的高精度螺旋锥齿轮，实现了高效率、高传动能力。
·也可使用食品润滑油

也支持封入NSF认定H1等级食品润滑油的型号。

外形尺寸与标准规格相同。

※详情请咨询本公司。

标准机型

机型	ED2M, ED4M (B) ~25M (B) (10个尺寸)
安装	Y, T, K1, K2, K3, K4
速比	1/1(M), 1/1.5～1/3(B)
输入功率	0.014～335kW

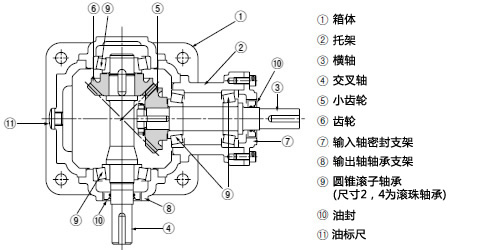

结构（一级减速）

※尺寸2、4没有油尺。

产品目录、使用说明书

型号表示例

ED	10	M	-	1-LR-O	-	Y
\| 系列	\| 尺寸	\| 速比		\| 轴配置・旋转关系		\| 安装形式
		M=1：1 B15=1.5：1 B20=2：1 B25=2.5：1 B30=3：1		*请参阅下面的链接		(Y、T、K1至K4) *请参照以下链接

轴配置和旋转关系图

安装形式、各插头的位置

■椿本产品型号指引

*要生成正确的格式编号，请按从左到右的顺序选择项目。

系列	尺寸	速比	轴对齐与旋转关系	安装形式
ED		M(1：1) B15(1.5：1) B20(2：1) B25(2.5：1) B30(3：1)	了解详情横向单轴型横向双轴型	了解详情 Y:安装地板 (尺寸2、尺寸4为可自由选择安装方向) T:天花板安装 K1:墙安装1 K2:墙壁安装2 K3:墙安装3 K4:墙壁安装4

尺寸

表示变速箱的大小。

速比

表示横轴与十字轴之间的速比。

轴对齐与旋转关系

表示安装面与横轴、十字轴的位置关系、旋转关系。

安装形式

指定安装方向。

商品一览表

※单击形状编号以显示详细信息。全部开启全部关闭

型号ED2M (安装方向自由-仅安装形式标记Y)

横向单轴型	ED2M-1-LR-Y	ED2M-1-R-Y	ED2M-1-L-Y	ED2M-1-LR-O-Y	ED2M-1-R-O-Y	ED2M-1-L-O-Y
	ED2M-1-UD-Y	ED2M-1-U-Y	ED2M-1-D-Y	ED2M-1-UD-O-Y	ED2M-1-U-O-Y	ED2M-1-D-O-Y
	ED2M-U-LR-Y	ED2M-U-R-Y	ED2M-U-L-Y	ED2M-U-LR-O-Y	ED2M-U-R-O-Y	ED2M-U-L-O-Y
	ED2M-D-LR-Y	ED2M-D-R-Y	ED2M-D-L-Y	ED2M-D-LR-O-Y	ED2M-D-R-O-Y	ED2M-D-L-O-Y
横向双轴型	ED2M-1-1-UD-Y	ED2M-1-1-U-Y	ED2M-1-1-D-Y	ED2M-1-1-UD-O-Y	ED2M-1-1-U-O-Y	ED2M-1-1-D-O-Y
横向双轴型	ED2M-U-D-LR-Y	ED2M-U-D-R-Y	ED2M-U-D-L-Y	ED2M-U-D-LR-O-Y	ED2M-U-D-R-O-Y	ED2M-U-D-L-O-Y
