轴对齐与旋转关系
| 横向单轴型 | 横向双轴型 | |||||||
|---|---|---|---|---|---|---|---|---|
| 交叉2轴 款式 |

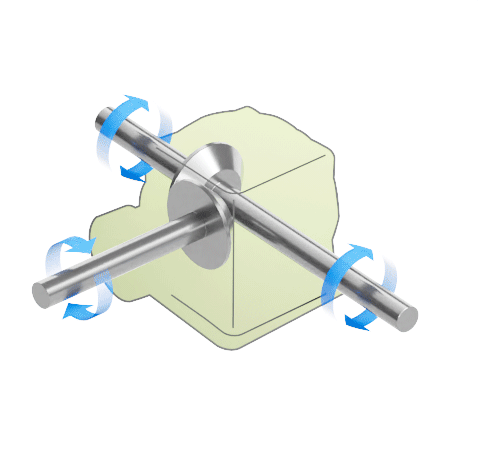

1-LR  |

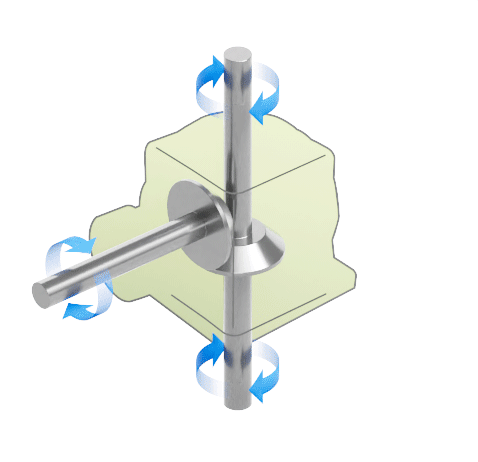

1-UD  |

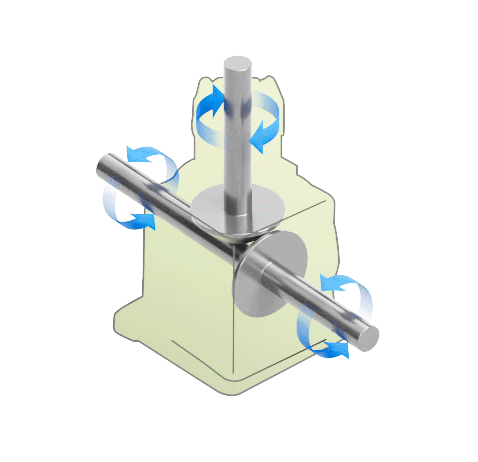

U-LR  |

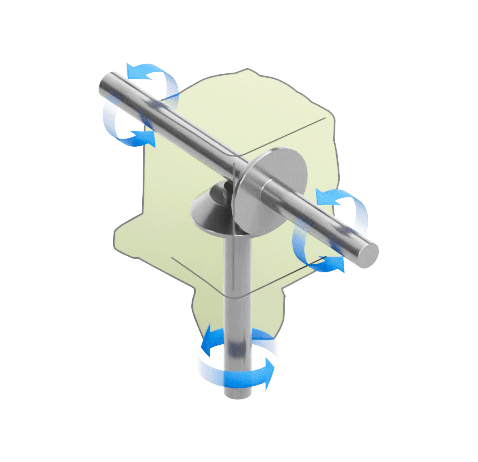

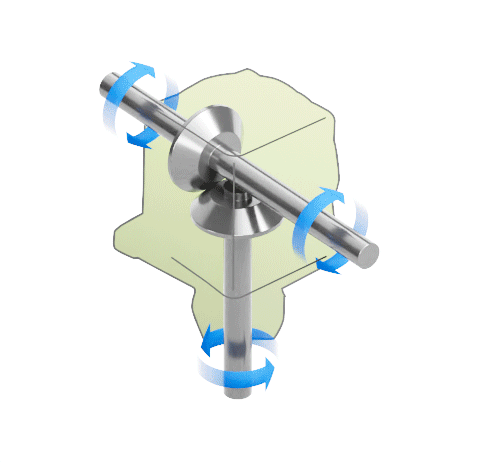

D-LR  |

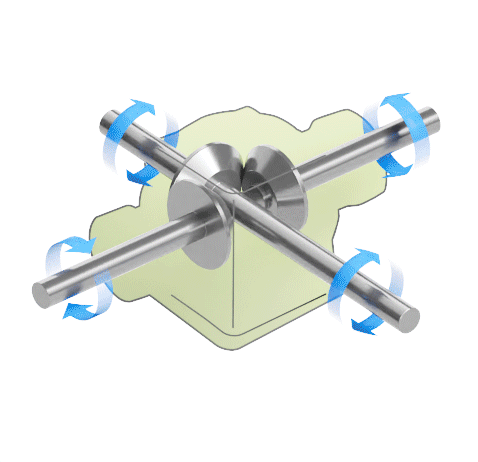

1-1-LR  |

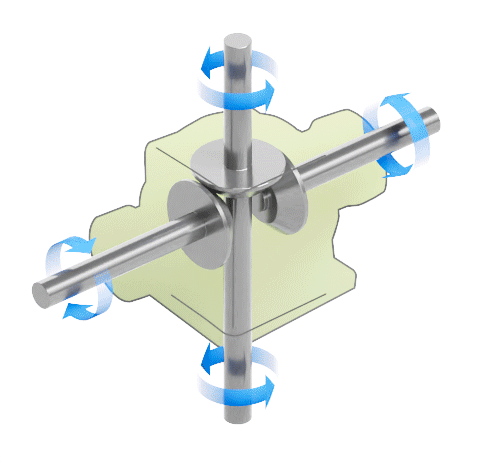

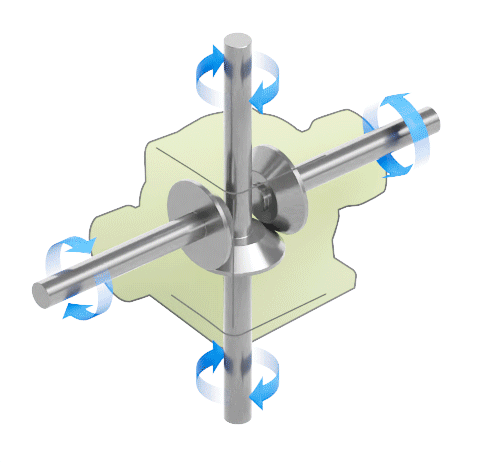

1-1-UD  |

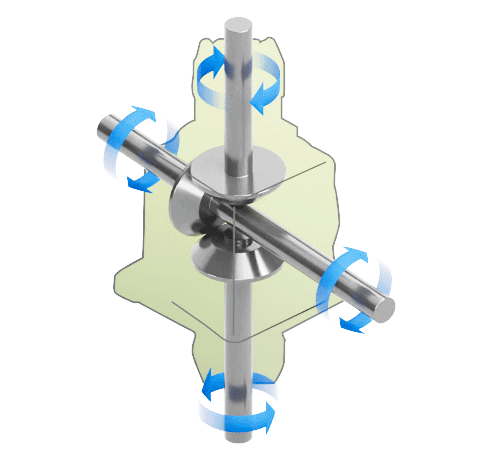

U-D-LR  |
|

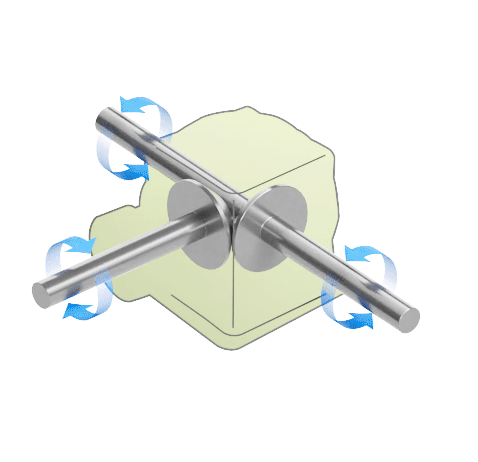

1-LR-O  |

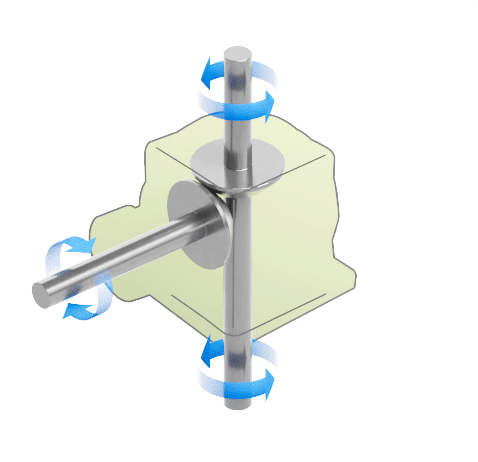

1-UD-O  |

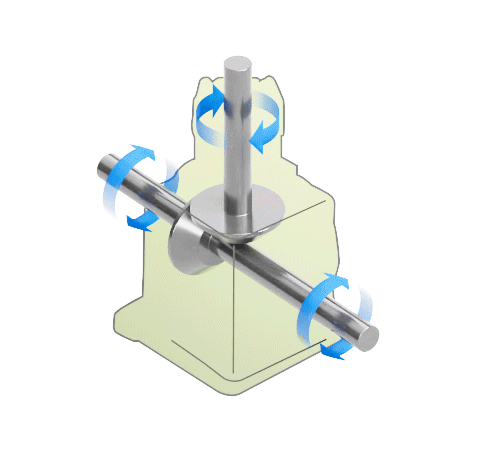

U-LR-O  |

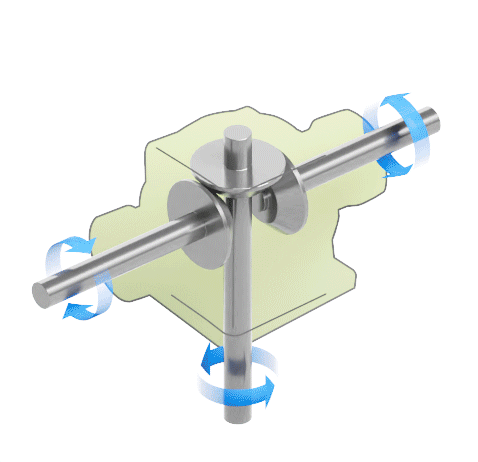

D-LR-O  |

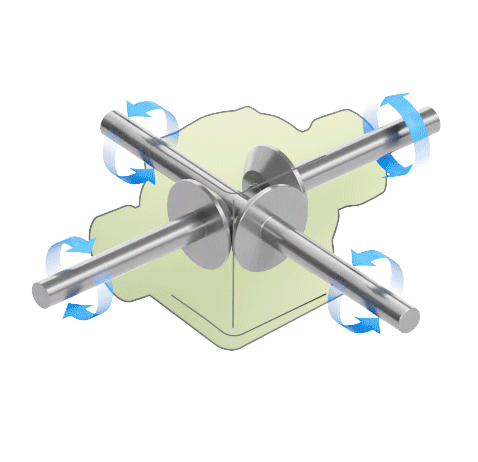

1-1-LR-O  |
1-1-UD-O  |

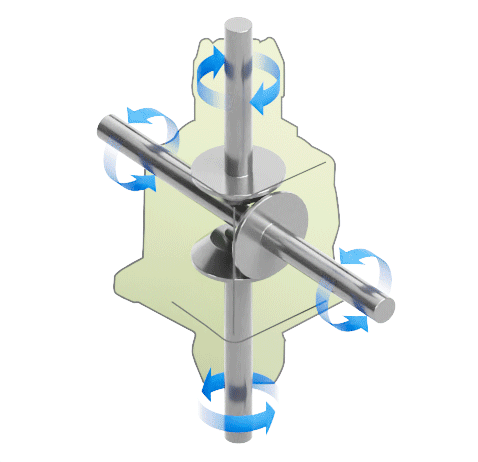

U-D-LR-O  |
||
| 交叉1轴 款式 |

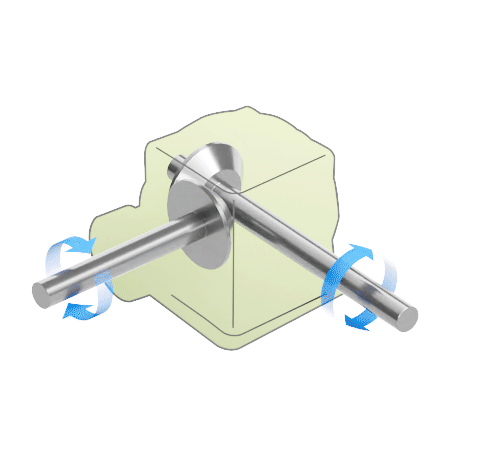

1-R  |

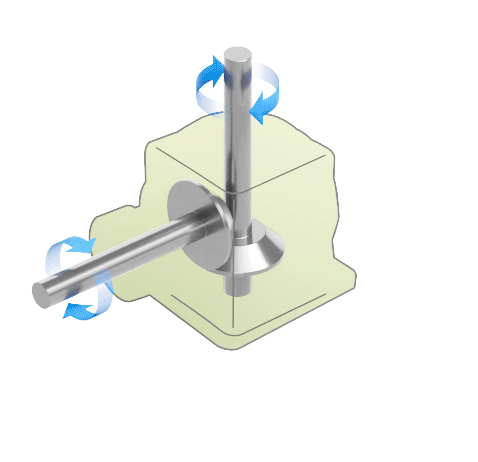

1-U  |

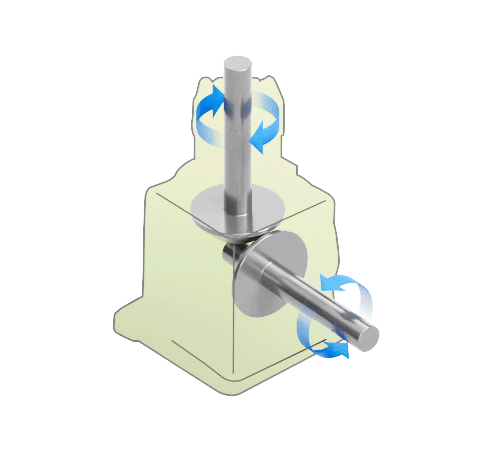

U-R  |

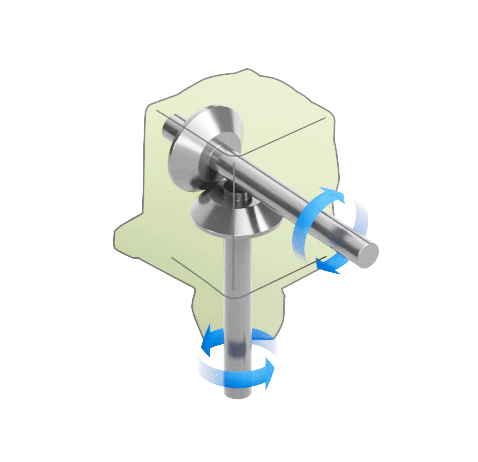

D-R  |

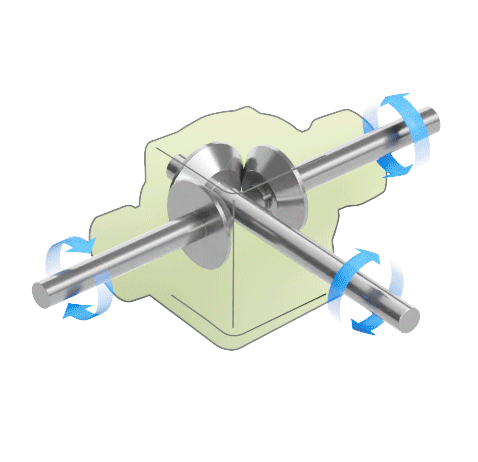

1-1-R  |

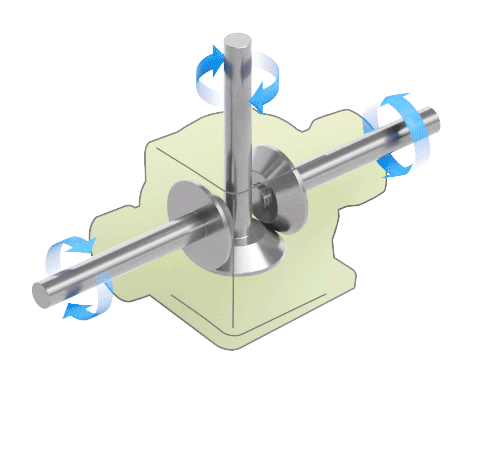

1-1-U  |

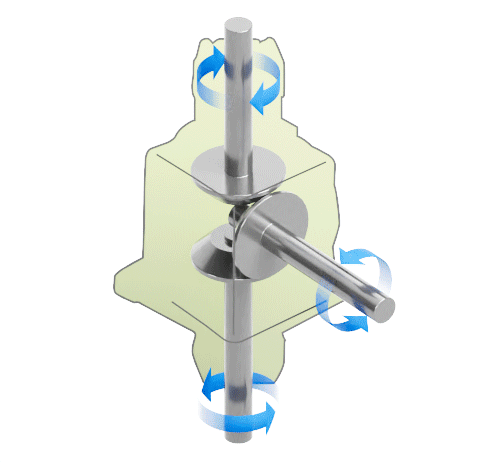

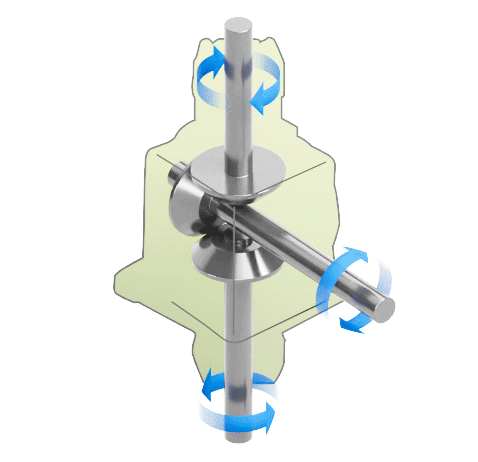

U-D-R  |
|

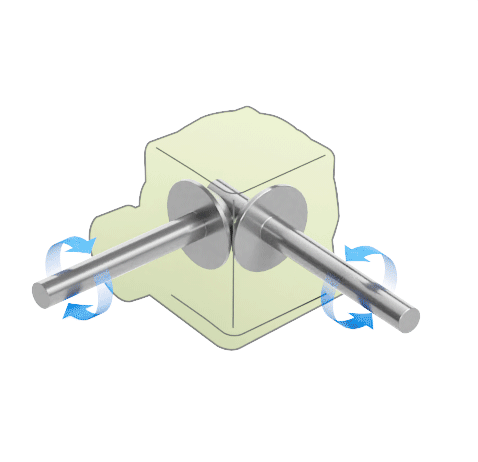

1-R-O  |

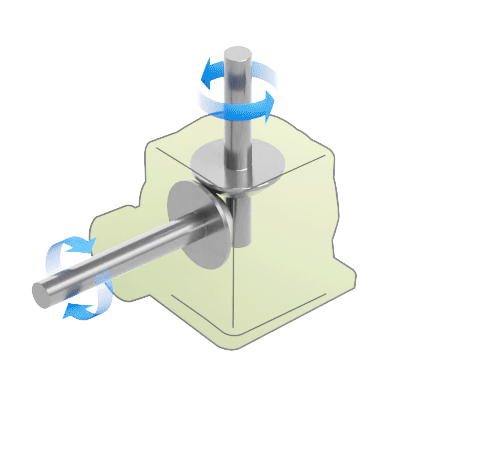

1-U-O  |

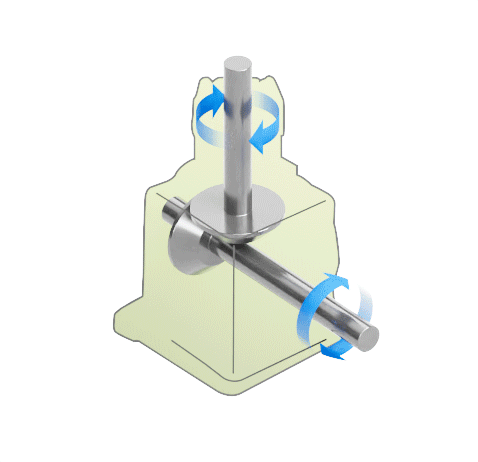

U-R-O  |

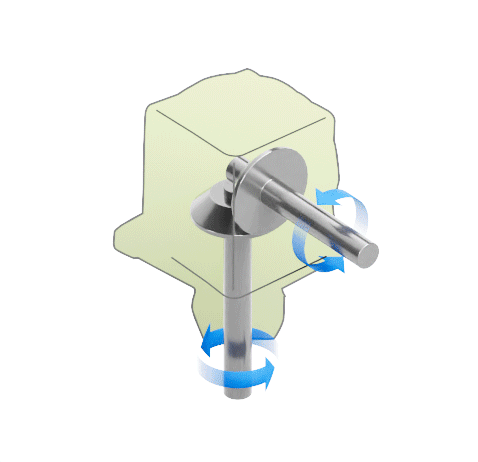

D-R-O  |

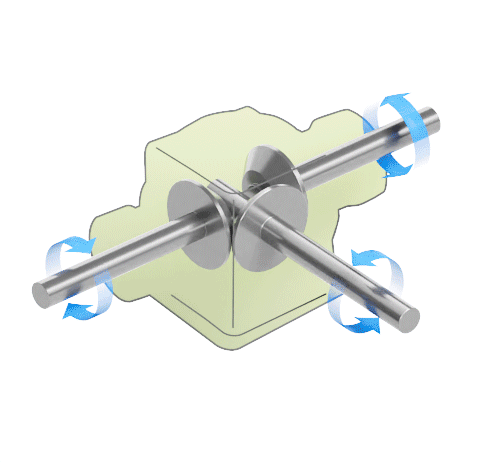

1-1-R-O  |

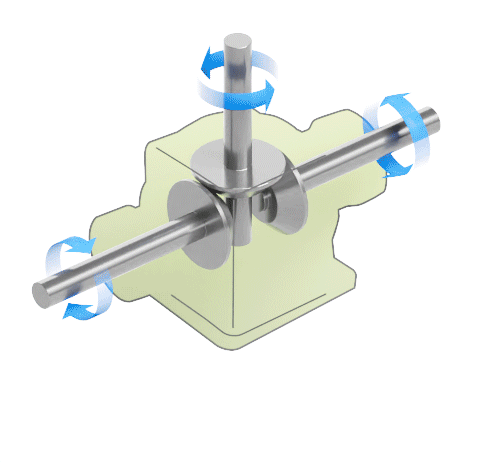

1-1-U-O  |
U-D-R-O  |
||

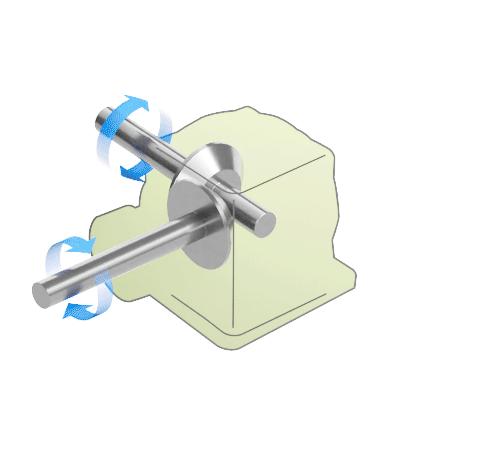

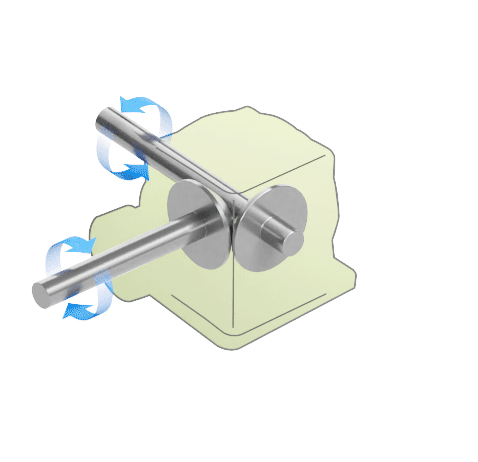

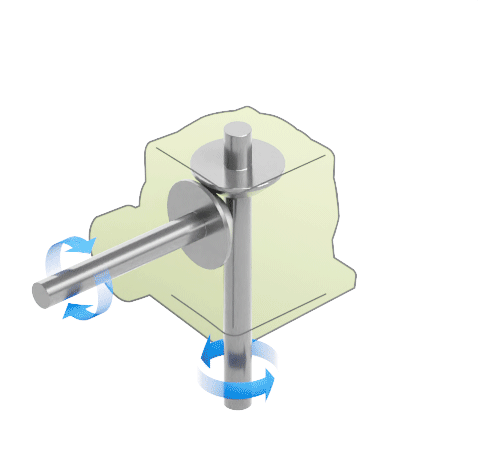

1-L  |

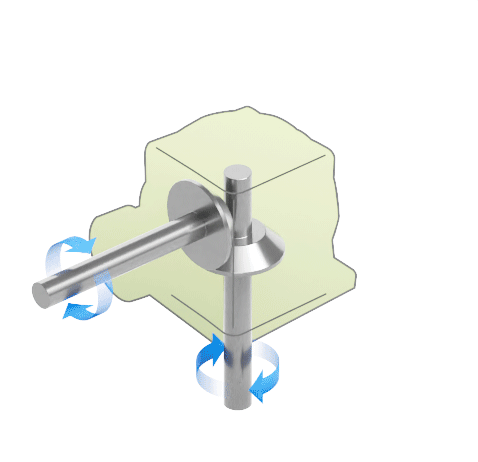

1-D  |

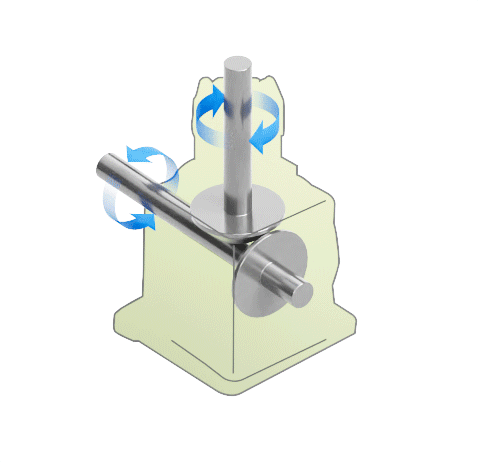

U-L  |

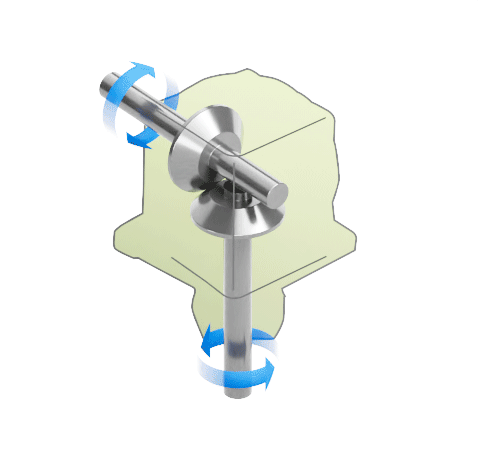

D-L  |

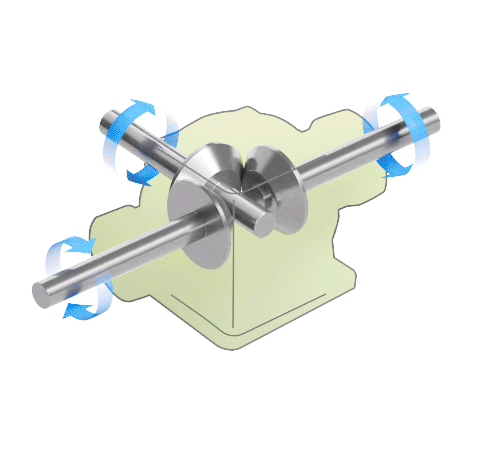

1-1-L  |

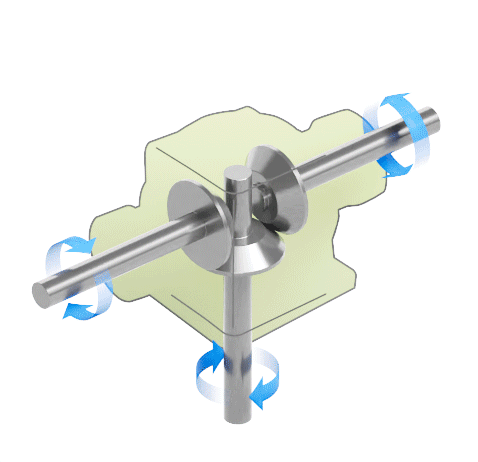

1-1-D  |

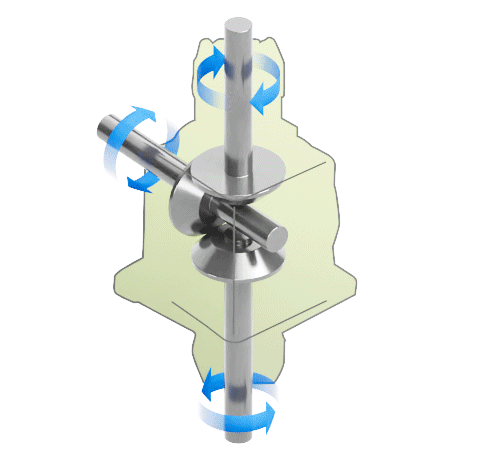

U-D-L  |
||
1-L-O  |
1-D-O  |

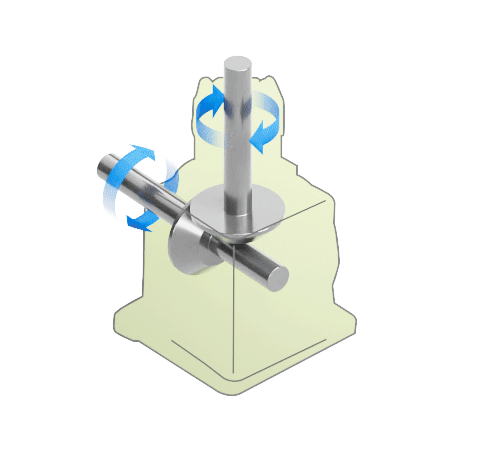

U-L-O  |

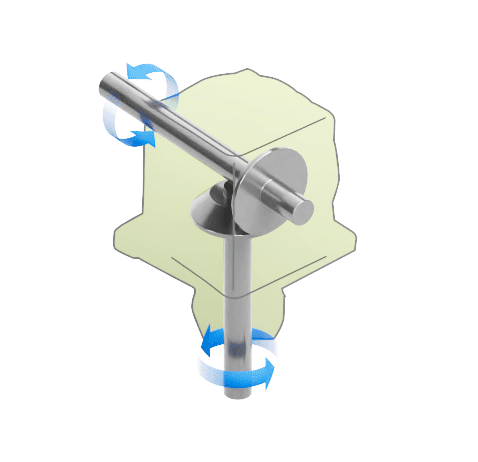

D-L-O  |

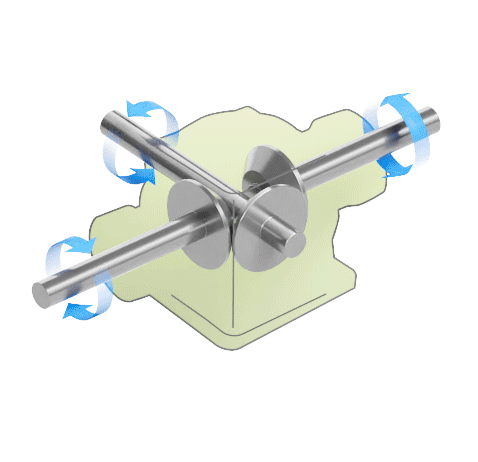

1-1-L-O  |
1-1-D-O  |

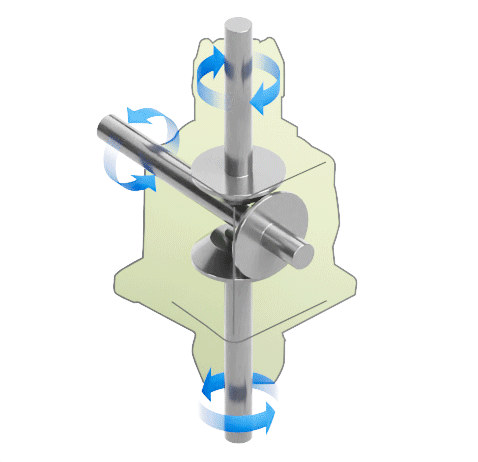

U-D-L-O  |
||
·具有以下轴放置的轴具有相同的旋转关系:。但是插头、油尺、铭牌的位置不同，请注意。
U-LR=U-LR-O,U-R=U-L-O,U-L=U-R-O,D-LR=D-LR-O,D-R=D-L-O,D-L=D-R-O
1-1-LR=1-1-LR-O, 1-1-R=1-1-L-O, 1-1-L=1-1-R-O,U-D-LR=U-D-LR-O,U-D-R=U-D-L-O,U-D-L=U-D-R-O
